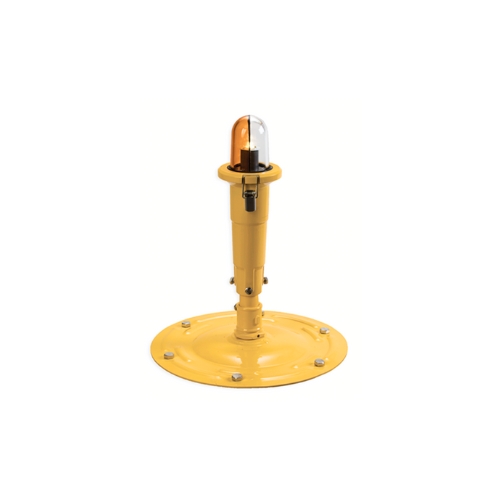

Runway Light Omnidirectional Elevated

Runway Light Omnidirectional Elevated

Complies with:

  • ICAO Annex 14 Volume I
  • L-861(L) and L-861E(L) and L-861SE(L) AC 150/5345-46 and the FAA EB No. 67. ETL Certified
  • TP 312 para. 5.3.12.7 and Appendix 5B Table 5B-1

Features

  • Three screws provide a 4° leveling adjustment for precise fixture alignment after installation
  • LEDs last up to 56,000 hours at high intensity and over 150,000 hours in normal use, cutting maintenance and re-lamping costs
  • Stainless steel single-latch clamp allows quick and easy removal of the top cover and lens
  • Watertight gaskets seal the lens and fixture head, protecting against moisture
  • Arctic option includes a thermostatically controlled heater to prevent ice and snow buildup, ensuring clear light output
  • Standard 1.5-inch coupling, with optional 2-inch and alternative thread sizes for flexible installation
  •


    The LED elevated runway light fixtures provide clear, medium-intensity omnidirectional lighting to mark airport runway edges in white, yellow, red, and green. They include a 4° leveling adjustment with three screws for precise installation. With an average LED life of 56,000 hours at high intensity and over 150,000 hours under normal use, these lights greatly reduce maintenance and re-lamping costs. The fixture features a stainless steel clamp for easy lens access and watertight gaskets to protect against moisture.

    The runway light elevated also offers an arctic option with a thermostatically controlled heater to prevent ice and snow buildup, ensuring consistent light output in cold climates. Built to endure temperatures from -55 °C to +55 °C and rated IP67 for water and dust resistance, it comes standard with a 1.5-inch coupling and options for different thread sizes. These fixtures work with existing lighting circuits, avoiding costly regulator or transformer replacements, making them reliable and efficient for airport runway edge lighting.
    .
